Genie Articulated Booms

Genie Lift Articulating “Z” Booms Z30 Z 30 Z45 Z 45 Z135 Z135 provide the ultimate in lifting versatility, with up, out and over positioning capabilities. Many Genie lift options are available, including two and four wheel drive, a rough terrain package, narrow access models that roll through standard double doorways; gas/lpg, diesel, electric, bi-fuel or tri-fuel capabilities. Choose from the Genie Lift Z30 Z 30 Z45 Z 45 Z135 Z135 models with working heights from 26 to 66 feet ( 7.9 to 20.1 m.); horizontal reach from 8 to 34 feet (2.4 to 10.4 m.).

Product Working Height max Horizontal reach max – riser retracted Lift capacity

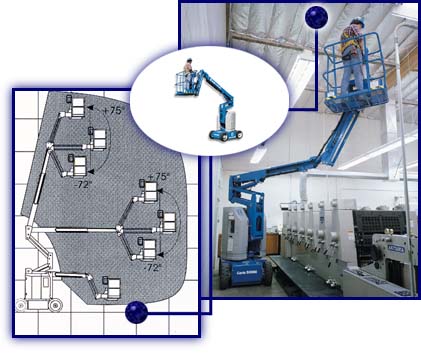

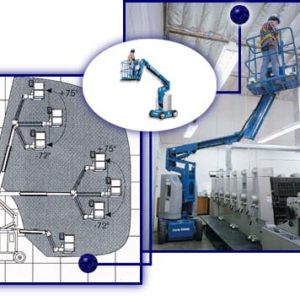

Z™-30/20N & Z™-30/20N RJ 36 ft 21 ft 5 in 500 lbs
Z™-34/22 N 40 ft 6 in 22 ft 3 in 500 lbs
<Z™-34/22 IC 40 ft 6 in 22 ft 3 in 500 lbs
Z™-34/22 DC & Bi-Energy 40 ft 6 in 22 ft 3 in 500 lbs
Z™-40N 46 ft 5 in 22 ft 8 in 500 lbs
Z™-45/25 & Z™-45/25J DC & Bi-Energy 51 ft 6 in 25 ft 500 lbs

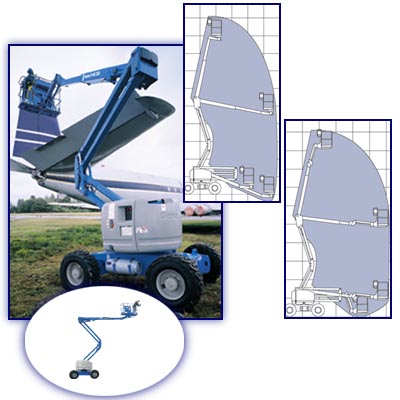

Z™-45/25 & Z™-45/25J RT 51 ft 11 in 25 ft 500 lbs
Z™-51/30J RT CE & AU only 57 ft 3 in 30 ft 4 in 500 lbs
Z™-60/34 66 ft 4 in 36 ft 3 in 500 lbs
Z™-80/60 86 ft 60 ft 500 lbs

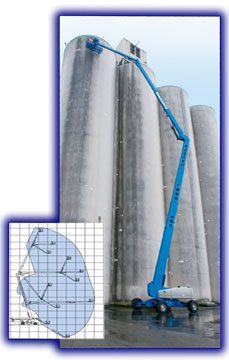

Z™-135/70 141 ft 69 ft 9 in 600 lbs

These are a small section of the Genie Lift Articulated Boom models, please contact our sales team for further information.
